Description

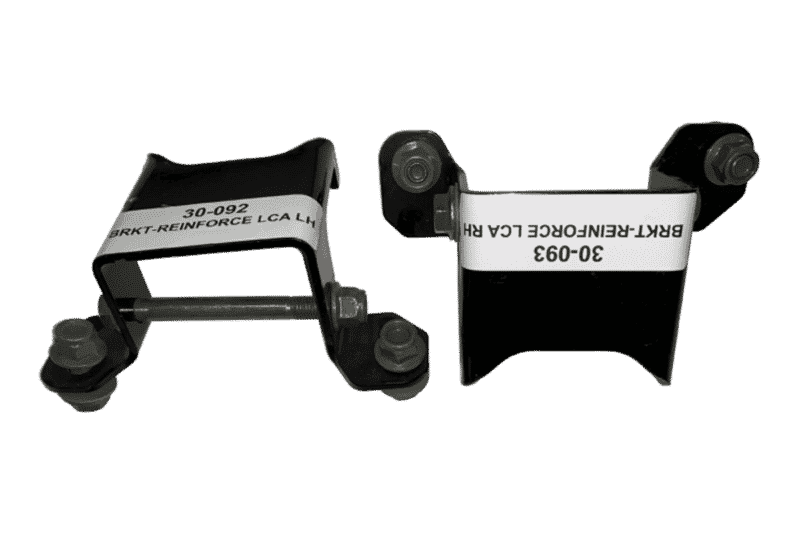

Lower Control Arm Bracket

Fits:

• 2013-2019 Ranger 900 All Models
• 2017 Ranger 1000 XP
• 2018 Ranger 1000 Crew
• 2015-2019 Ranger 1000 Diesel (Kohler) all models
• Bobcat and Gravely models to 2019 (not 2019.5 diesels)

Kit Contents:

1. Part #30-092 BRACKET-REINFORCE LCA LH: QTY 1
2. Part #30-093 BRACKET-REINFORCE LCA RH: QTY 1
3. Part #75-052 SCR-HXFL M10X1.25X30 8.8 ZOD 7519059: QTY 4
4. Part #75-053 SCR-HXFL M10X1.25X100 10.9 ZOD 7519284: QTY 2
5. Part #90-027 WSHR-10.5X24X1.2446ZODHRD 7556545: QTY 6
6. Part #80-014 NUT-M10X1.25 FLGNYLOC-OLIVE D 7547333: QTY 6
7. Part #15-025 INSTALLATION INSTRUCTIONS
